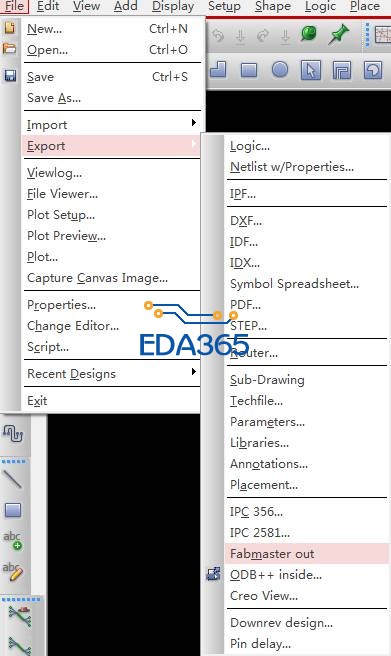

This commonly happens when a PCB design is reused without clearing the net_short property from all features. Question: When attempting to export files I receive the following error “dml_eda-230001-Internal error”.Īnswer: This problem can appear if there are net names that don’t exist in the design but appear when the net_short property is displayed. ODB++ Inside is only supported on 64 bit systems. Question: Is there a 32 bit version of ODB++ Inside available ?Īnswer: No. What can I do to fix this?Īnswer: You need to have admin rights to install the software. Question: I get error “gen_fs-2008-Unable to open output file”. Question: I am trying to run ODB++ Inside from OrCAD PCB Designer Standard I receive an error window with the following reason. How can I fix this?Īnswer: There can be a problem if the Cadence tools are open during the install since both rely on the Microsoft Visual C++ Redistribute package.Ĭlose all Cadence products and try to reinstall.Īlso, you will need Admin rights to your computer to install. If someone finds what the new installer lacks, we could need it for future releases.Question: When exporting a design from Allegro I get a message saying the ODB++ Inside is not installed. (setup.exe is the new, failing installer.) You should probably remove that Temp diretory after you're done, too. (That's what they say, I didn't get to see it.)Īll you need to do is execute this legacy installer, located at $WINEPREFIX/drive_c/users/$YOU/Temp/RarSFX0/installsetup.exe. The good news is that - for now - Cadence still embeds a legacy installer with the new software, which allows you to finish the install unsuccessfully, albeit with a less shiny UI. This being done, it will still die spontaneously after having decompressed its payload and tried to launch the actual installer inside. The installer needs Mono installed, and a 64-bit prefix.
Installation doesn't work out of the box.ģD view seems to make the application freeze (and need a thorough killing of its processes). Installing is trickier than up to 17.2 (see "Workarounds"), but all previous functionalities seem to be present, and those I personnaly use (zooming, (de)hilighting, Find, Visibility, Flip design) are working so far.
